MVS | MVP serial
MVS | MVP serial

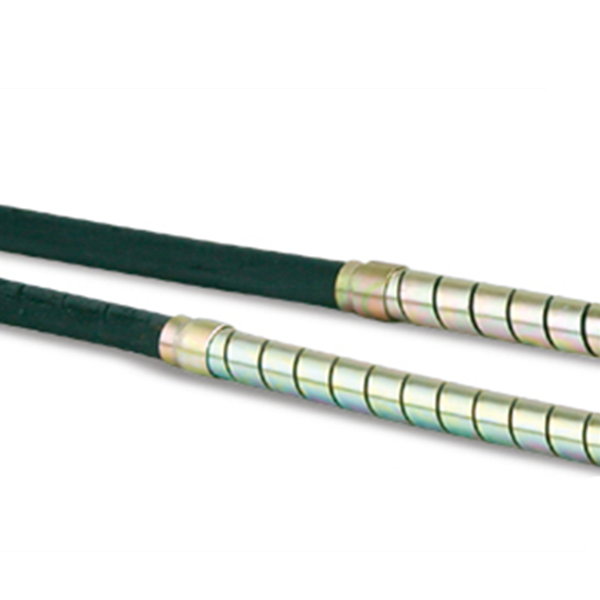

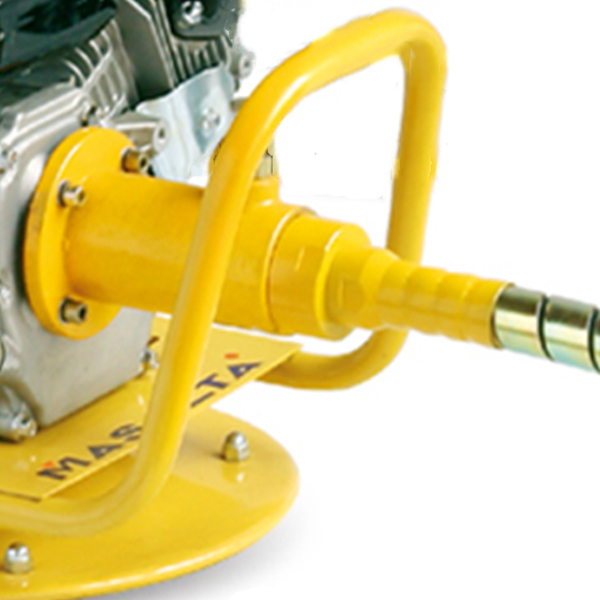

MASALTA internal concrete vibrators (MVP/MVS series) use the pendulum principle. 3,000rpm of the drive unit translates via the flexible shaft into 12, 000 vibrations per minute in the poker head. The low output speed ensures high reliability and extended service life. It can be used between two types of drive units (interchangeable): electrical motor MVE and petrol or diesel engine drive units MVD series, with 5 standard poker diameters.

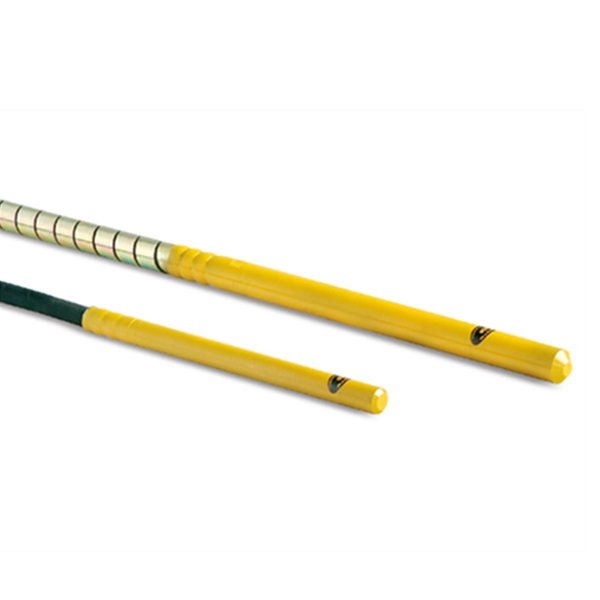

The MVP vibrator poker is top of the range poker head suitable for professional application.
The MVS vibrator poker is an economical and alternative one manufactured according to MASALTA quality standards.
| Model | Vibrator Head DiaxLength mm(in) |
Vibrator Amplitude mm(in) |
Frequency Hz |
Revolution of Flexible Shaft rpm |
Flexible Hose Length m(ft) |
Approx Weight kg(lb) |
| MVS 32 | 32x442(1.3x17.4) | 1(0.039) | 225 | 3000-3600 | *Standard 6m(20) Maximum 8m(26) |
11(24) |
| MVP/MVS 38 | 38x442(1.5x17.4) | 1.2(0.047) | 225 | 3000-3600 | *Standard 6m(20) Maximum 8m(26) |
12(27) |
| MVP/MVS 45 | 45x442(1.7x17.4) | 1.25(0.049) | 225 | 3000-3600 | *Standard 6m(20) Maximum 8m(26) |
13(29) |
| MVP/MVS 50 | 50x442(1.9x17.4) | 1.3(0.051) | 225 | 3000-3600 | *Standard 6m(20) Maximum 8m(26) |
16(35) |
| MVS 70 | 70x442(2.8x17.4) | 1.4(0.055) | 200 | 3000-3600 | *Standard 6m(20) Maximum 8m(26) |
17(38) |
