Masalta Vibrating Screed MMD series
Vibrating screed, concrete screeding vibrator, oscillation mechanism to allow work in both directions, produce very accurate level without the need of guiding rails. It isdesigned to reduce time spent in leveling and economic finishing of largeareas of concrete. the vibration of the blade improves the consolidationof the concrete and reduces time spent "bull floating" the concrete surface.
Features

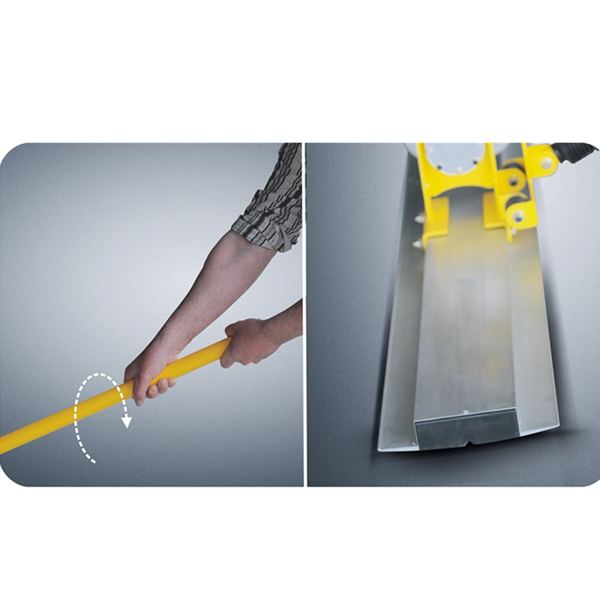

- The blade produced from hollow section aluminum extrusion with convex profiled sole, is specially designed for the pushing and pulling of concrete.
- Blade angle is easily controlled(for forward/backward movement) by a blade pitch control.
- Clip together handle offer a maximum reach of 5. 4 meters with 3 extension sections.
- Easy cleaning and transportation.
| Model | MMD-2 | MMD-3 | MMD-4 |
| Engine Type | Chinese | Robin EH025 | Honda GX25 |
| Power Kw(hp) | 0.8(1.1) | 0.81(1.1) | 0.72(1.0) |
| Operatiob Mass Kg(lb) | 11(24) | 10.5(23) | 10(22) |
| Handle Length m(ft) | 1.8(6)-5.4(18) | ||
Screed Blade
| Model | MMDB-1 | MMDB-2 | MMDB-3 | MMDB-4 |
| Length m(ft) | 1.5(5) | 2(6.6) | 2.5(8.2) | 3(9.8) |
| Weight kg(lb) | 6.2(13.7) | 8.3(18.3) | 10.3(22.7) | 12.4(27.3) |
