Masalta Double Drum Vibratory Roller MDRS65
MDRS65 is a vibratory roller with hydraulic-controlled walking it is characterized in the applications of asphalt, soil and granular material compaction. Its compact design makes it perfect in the jobs on curbs sides and in confined areas.
Features
- Deadman control lever offers reversing protection.
- Mechanical parking brake.
- Ergonomically designed handle lever.
- Side and Curb clearance allow for the closest approach to curbs walls and other obstacles.

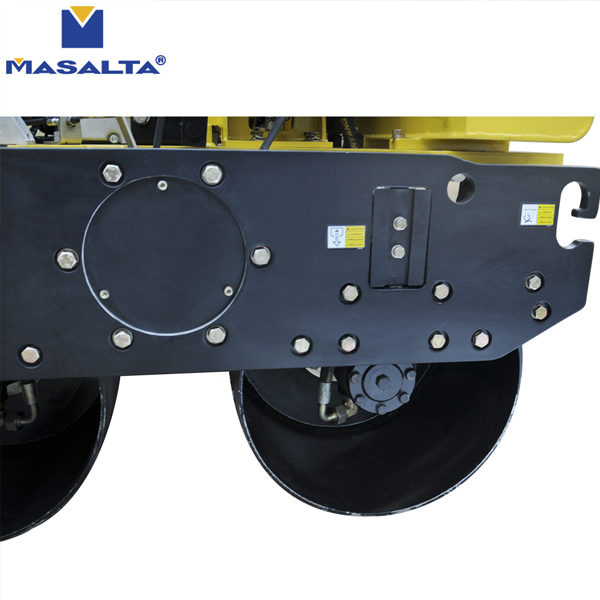

- Dual smooth drums with beveled edges eliminate marks on ground and asphalt.

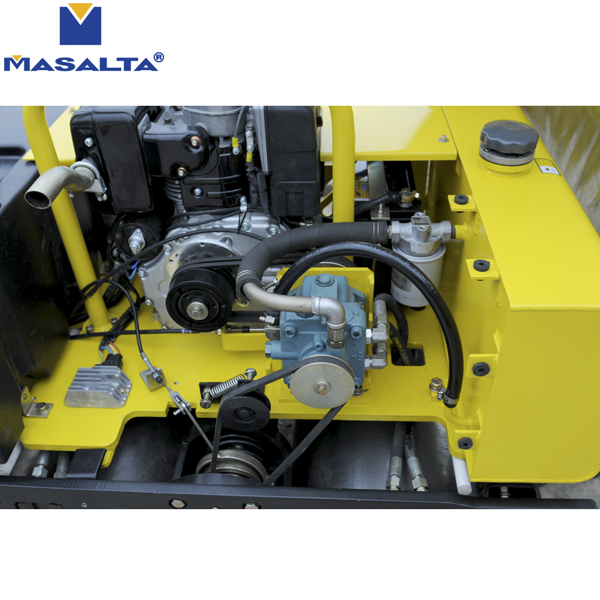

- Low maintenance and easy accessible diesel engine.
- 40L corrosion-free water tank.
- Two scraper bars ensure a clean drum.
- High-quality hydraulic pumps and motors.
| Model | MDRS65L | MDRS65H | MDRS65P | MDRS65K |
| Engine Type | Lombardini 15LD350 | HONDA GX390 | KIPOR KM186F | KUBOTA E75-NB3 |
| Power kw(hp) | 5.5(7.5) | 8.7(11.8) | 6.3(8.6) | 4.6(6.3) |
| Weight kg(lb) | 640(1411) | 625(1378) | 630(1389) | 650(1433) |
| Drum Diameter mm(in) | 650×ф402(25.6×ф16) | |||
| Static Linear Force N/cm | 11.3 | |||
| Centrifugal Force kN | 51 | |||
| Travel Speed km/h(ml/h) | 3300(55) | |||
| Frequency vpm(Hz) | 0-3.6(2-2.4) | |||
| Water tank Capacity L(Gal) | 40(8.8) | |||
| Dimension mm(in) | 2378×696×1130(94×27×44) | |||
