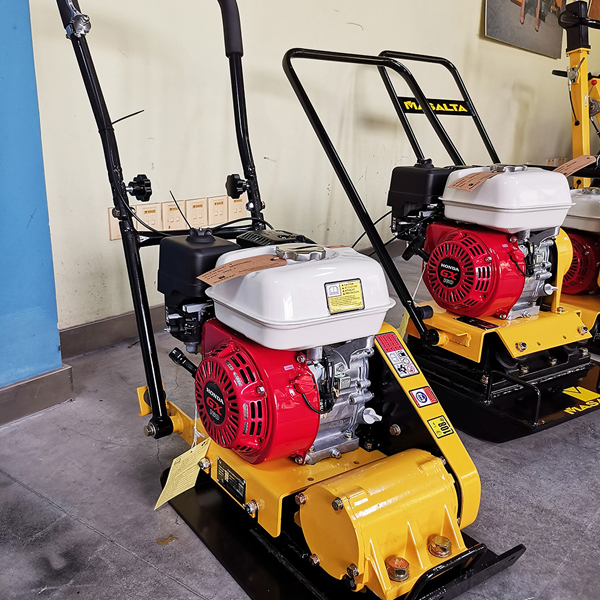

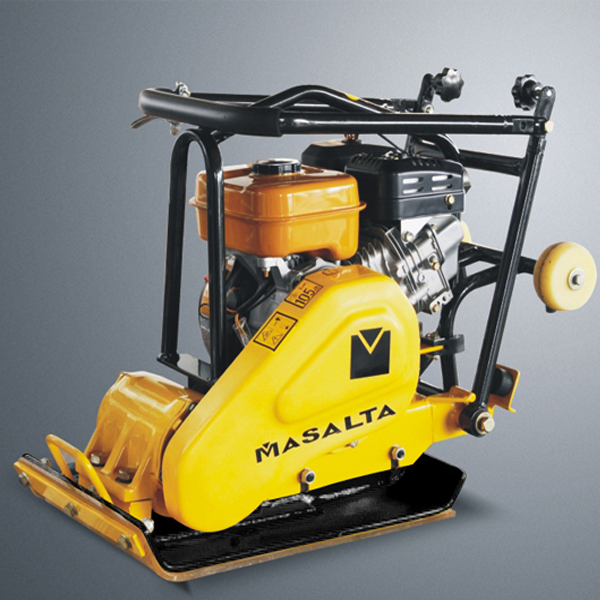

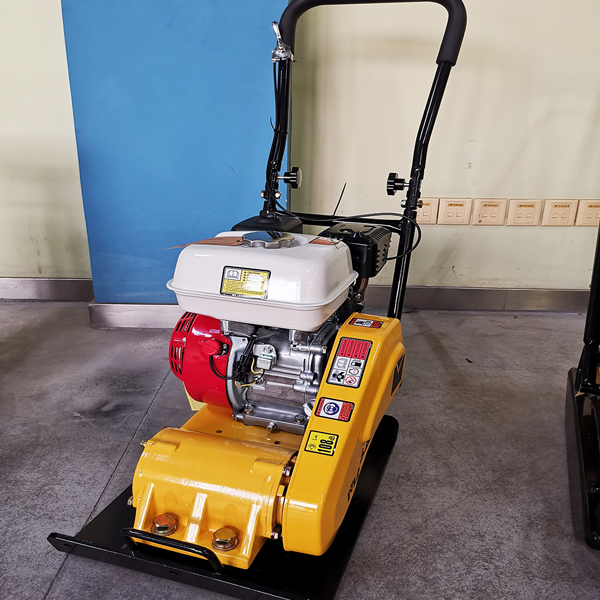

Forward Plate Compactor MS60
Ideal for sand, gravel and mixer soils in narrow trenches and along foundations, walls and abutments.
Features
- Foldable handle for easy transportation and stock.
- Open plate provides self cleaning.
- Built-in wheel for easy transportation.
- Radius base plate for easy access to corners.
- Sealed belt cover to prevent sand and soil.
- Heavy-duty shock mounts reduce vibration to the upper engine handle.
- Throttle control is available as optional.
- Protective frame is available as optional.
| Model | MS60-2 | MS60-3 | MS60-4 |

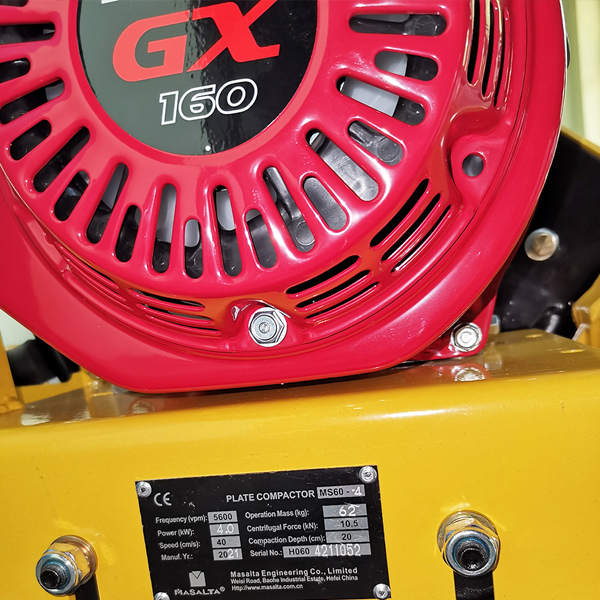

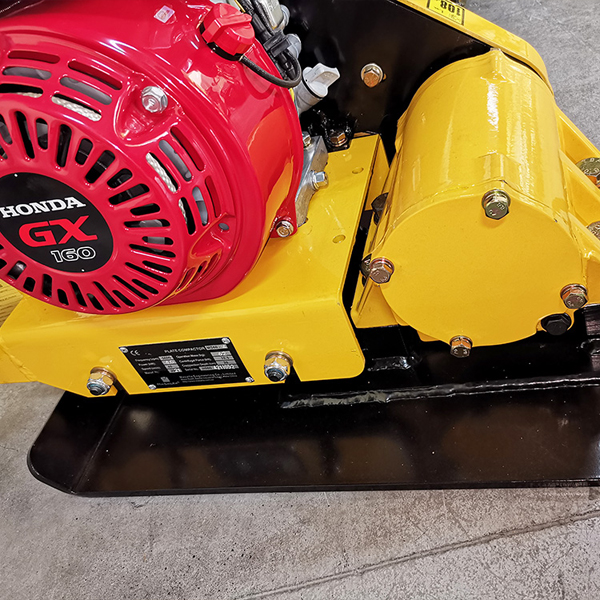

| Engine | MASALTA G160F | Robin EX17 | Honda GX160 |
| Power Kw(hp) | 3.6(4.9) | 2.9(4.0) | 3.6(4.9) |
| Operatiob Mass Kg(lb) | 62(136) | 61(134) | 62(136) |
| Centrifugal Force kN | 10.5 | ||
| Frequency vpm | 5600 | ||
| Travel Speed cm/s(in/s) | 40(16) | ||
| Compaction Depth cm(in) | 20(8) | ||
| Efficiency ㎡/hr(ft²/hr) | 450(4800) | ||
| Plate Size L×W cm(in) | 50*36(20*14) | ||
| Dimension cm(in) | 108*40*80(43*16*31) | ||
